Introducing Reuben’s Hand-wound Vintage 50X Replica Pickups!
Butyrate Bobbins, 42AWG Enamel Wire, Your Choice of A2, A3, A4 or A5 Roughcast Magnets, Maple Spacers, Nickel Plated Base and Hardware, Brass Bobbin Screws, 2 Conductor Braided Wire, Unpotted (Wax Potted on Request)

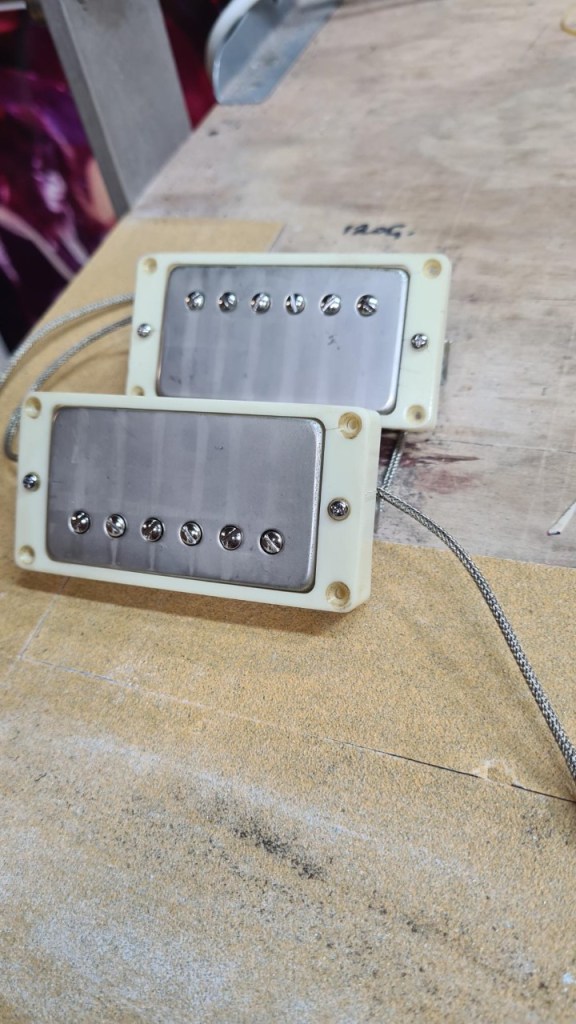

*Nickel or Gold Plated Covers are Available – Please Enquire for Prices!
We offer 2 Different Winds depending on Your Guitar’s Construction Glue Type.
*Tite-bond Wind – a Modified Wind designed for early 1970s USA Factory and up to 2014 Custom Shop Reissues constructed with Tite-bond Glue.
*Hide Glue Wind – The Original Wind designed for Recent Custom Shop Reissues constructed with Hide Glue.
We recommend a 0.4k ohm offset for balance!
Neck Pickups can be wound from 7 – 8k ohm
Bridge Pickups can be wound from 7.5 – 8.6 ohm
We make a lot of Different Model Custom Wound Pickups, we are sure to have a Model of Pickup that you will love! If you have any further enquires or want a list of all the Custom Models that we wind – please email us –
reubensguitarrepairs@hotmail.com

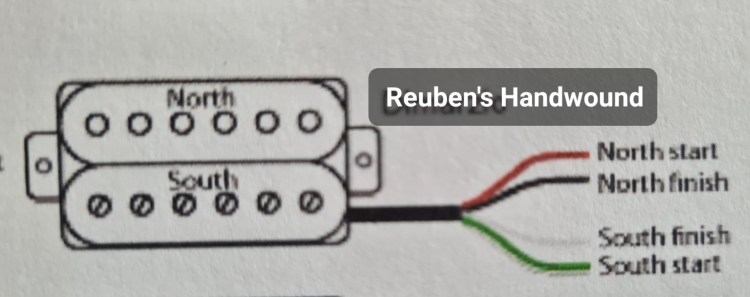

Pickup Color Codes…
Our colour codes are the same as Dimarzio Pickups, when installing alongside other brands of pickups you may need to swap the Red and Green Wires over to sort out any Phase Issues. Also if mixing with other Branded Pickup or if you are installing into a PRS with a Rotary 5 way switch Guitar be sure to change the phase (switch the red and green wires) on the Neck Pickup to resolve any Phase Cancellation Issues if it sounds thin and weird when both Pickups are selected – same advice also applies to 3-Way Toggle Switch in the Middle Position with different rand Pickups installed.
